5.5" IPS Portrait Screen LS055R1SX04,1440x2560 50HZ,450nit,to MIPI Port

LCD Controller Board: Board Work for 40Pin Mipi LCD ScreenInput Power Adapter: 5Vdc More than 1A,Micro USBCome In Standby Model When Not Input SignalStandby Model <0.3WBoard Size: 60mm x 40mm x 3mm5.5" LS055R1SX04 1440X2560 LCD Screen:Display New Mode2, Normally Black, TransmissiveResolution 1440RGB)×2560,50HZOutline Size 70.94 ×128.49×1.45(H×V×D)Display Area 68.04× 120.96 (H×V)Brightness 450 cd/m² (Typ.)Contrast Ratio 1300:1 (Typ.) (TM)Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]Interface MIPI (2 ch, 4 data lanes) , 50 pins , ConnectorBacklight WLEDInput Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)Packing list :1× To Mipi LCD Controller Board VS-H/DTMIPI-V11×5.5inch LS055R1SX04 1440X2560 LCD Screen with Tempered Protective Glass1× Cable1× Converter Board.

• with tempered protective glass,resolution 1440x2560 60HZ ,Display Area 68.04× 120.96 (H×V)mm,high brightness 450 nit,Contrast Ratio 1300:1 ,50pin MIPI interface , WLED backlight ,Input Voltage 1.8/5.75/-5.75V
• Video input:,Input Power Adapter: 5Vdc More than 1A.Please use in insulated environment.

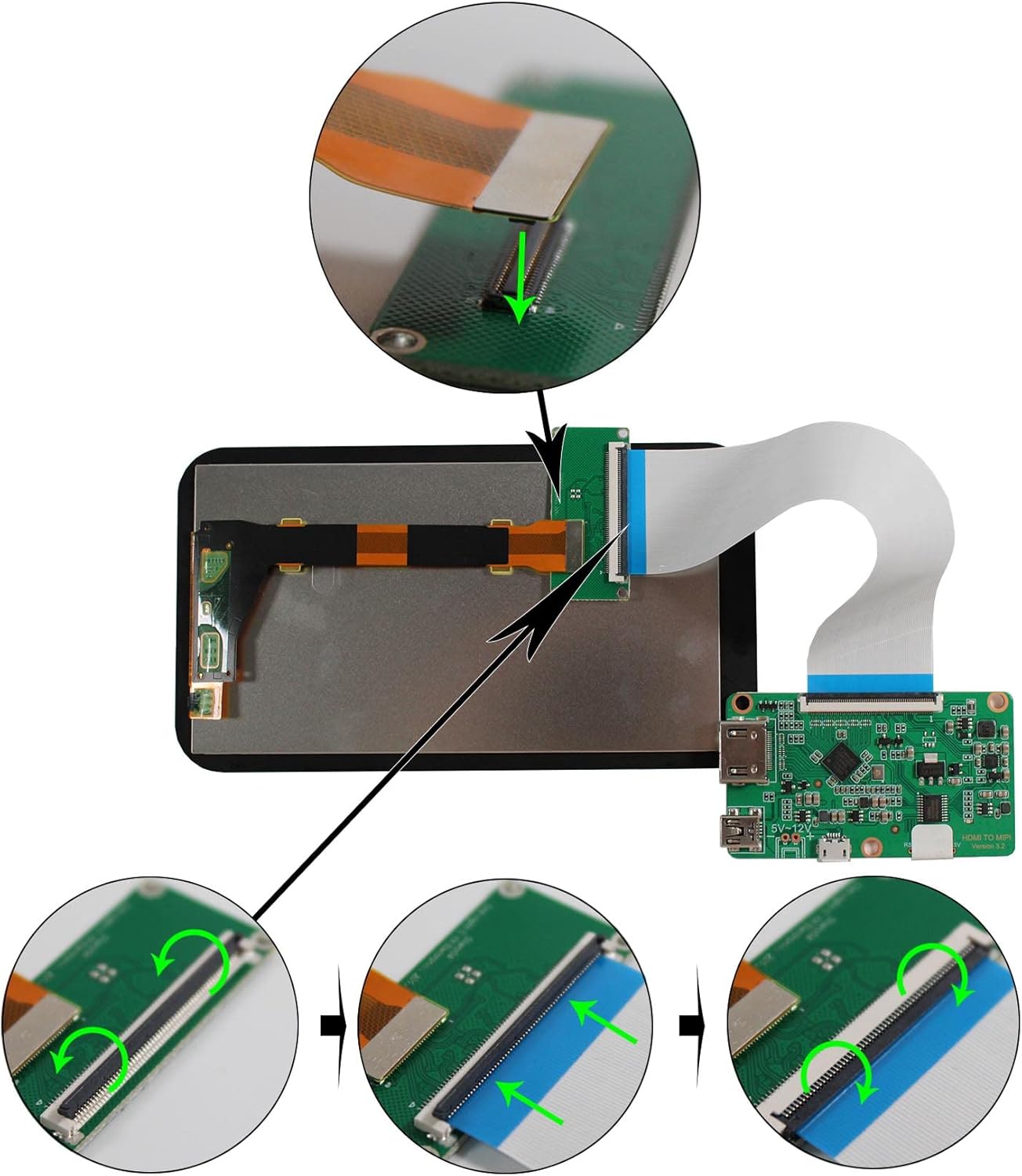

• Connecting cables and ports according to link picture details ,power on ,the LED light will be green,then enter into ,the screen can work well after powering.
• Important: This screen can only work with 60HZ frequency ,so pls double confirm before purchasing .
• If there is any problem,Pls provide some connecting pictures, we will give you best solution in 12 hours.
