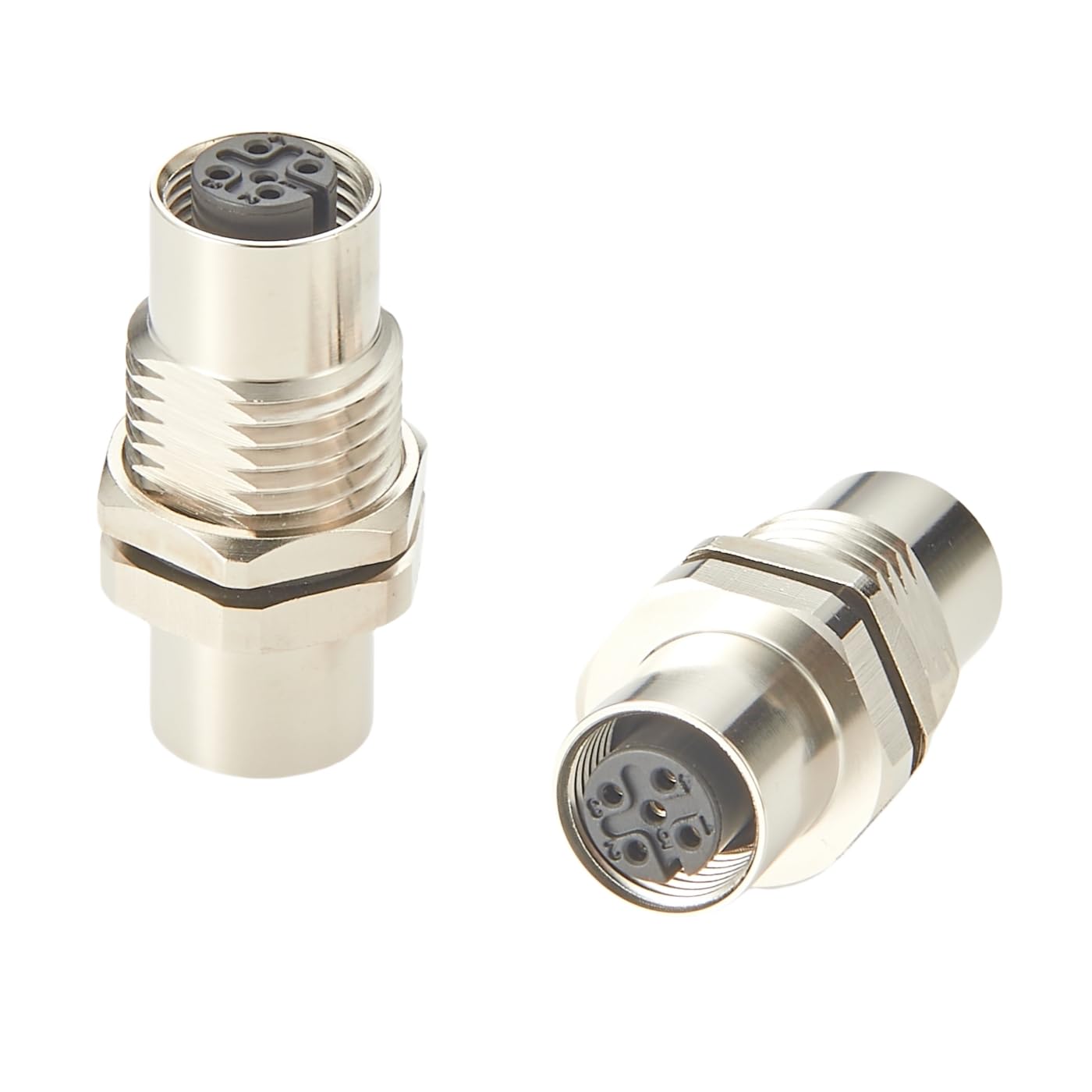

M12 A Code 5Pin Female to Female Coupler Converter Panel Mount IP67 Shielded Bulkhead Industrial Circular Connector Socket Receptacle for NMEA2000 Can Bus CANOpen DeviceNet (2PCS)

Specification:Connector A: M12 A-Coded 5Pin FemaleConnector B: M12 A-Coded 5Pin Female Panel Mount: Bulkhead Panel MountProtection Class: IP67Panel Cutout Size: 16.5mmSealing: O-ringContact: Cooper, Gold-platedTemperature range: -40℃~+80℃Plug-in cycle: ≥100Rated voltage: 60V AC/DCRated current: 4AHexagonal nut: M16 X 1.5

• ✔Product Parameter – Connector A: M12 A-Coded 5Pin Female; Connector B: M12 A-Coded 5Pin Female; Plug-in cycle: ≥100; Rated voltage: 60V AC/DC; Rated current: 4A; Hexagonal nut: M16 X 1.5; Sealing: O-ring.
• ✔Threaded Connection – M12 Female to Female Coupler Adapt thread locking mechanism, anti vibration locking design, 12mm thread joint can be easily connected to sensor devices and ctuator devices and field bus components.

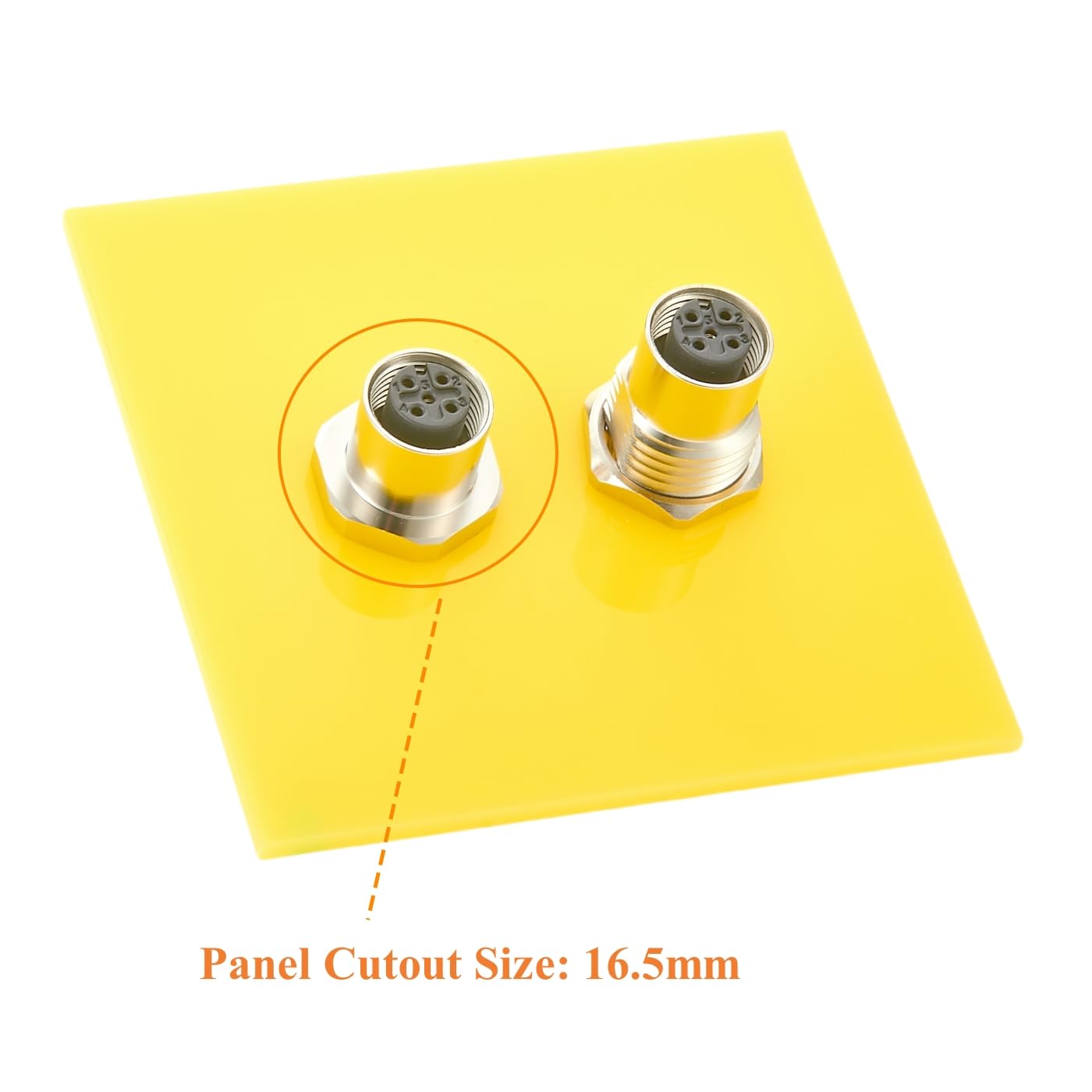

• ✔Front Panel Mount – M12 Wall Pass-through Panel Adapter Simply cut a 16.5mm hole in the board and secure with the nut,Eesy to install.making it suitable for control panels, automation systems, and industrial enclosures.
• ✔Application – M12 Shielded Industrial Circular Connector for NMEA2000, CAN BUS, CANOpen, Profibus, DeviceNet,also for PLCS, Marine, sensors, actuators, machine equipment,industrial automation, industrial network transmission, ships, security and other fields.
• ✔Custom Cable – We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
