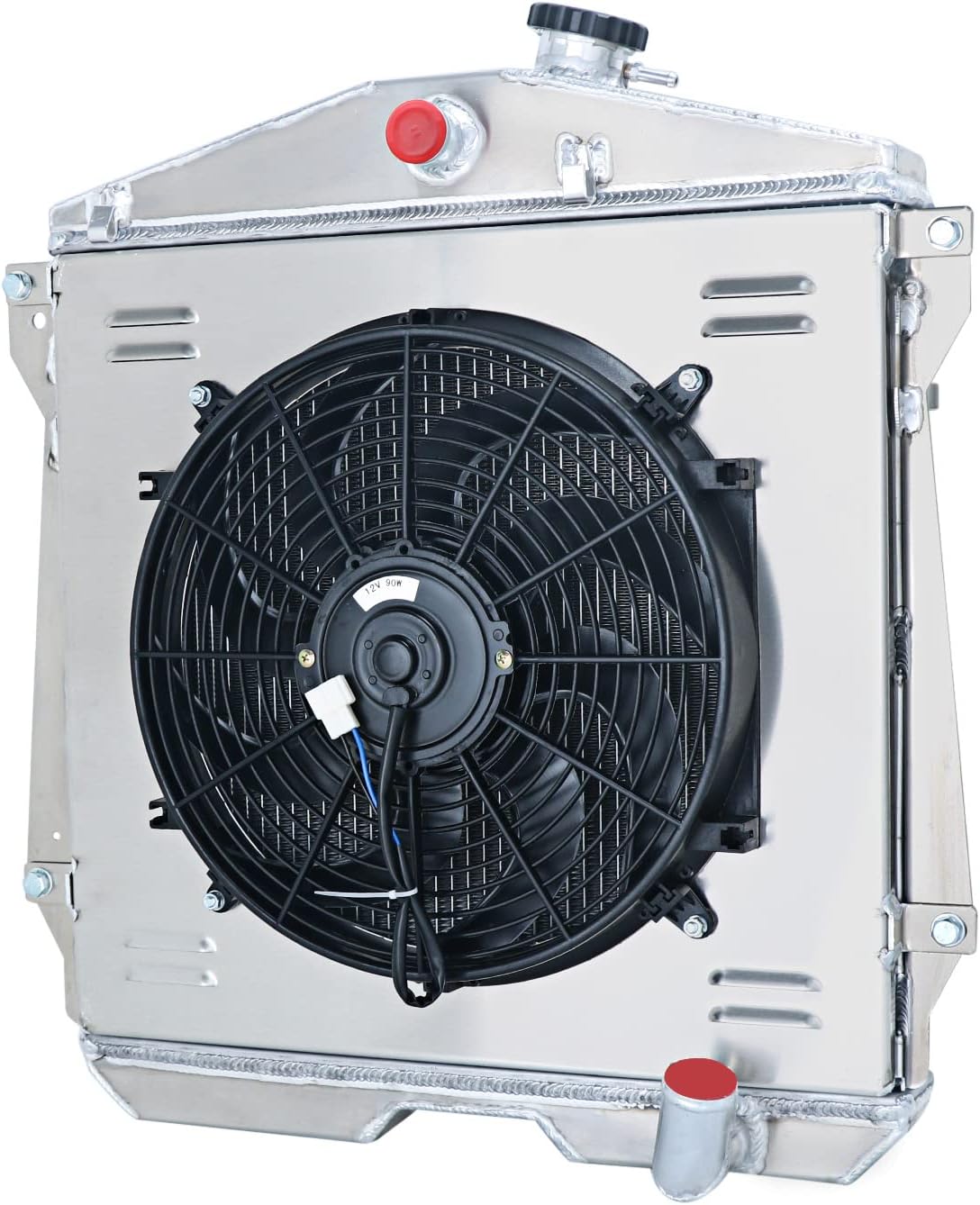

Radiator for 1943-1948 Chevy Fleetline FleetMaster Stylemaster L6, 3 Rows Aluminum Radiator + Shroud/Fan + Relay Kit

This Radiator Compatible with: Fits 1943-1948 Chevy Fleetline 3.5L L6 Manual Fits 1943-1948 Chevy Fleetmaster 3.5L Ll6 Manual Fits 1943-1948 Chevy Stylemaster 3.5L L6 Manual (Manual Transmission 3.5L L6 Models Only) Please Notice To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part Radiator Specs: Core Row: 3 Row Tube Core Inlet / Outlet Location: Center / Passenger Tank & Core Material: Full Aluminum Transmission Oil Cooler: No Flow Type: Downflow Mounting Type: Bracket Mount Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap PLS check core/overall/inlet/outlet SIZE carefully before you order Fan Details: Volt :12v Maximum Fan CFM: 1730 cfm Fan Diameter (in): 14.050 Thickness (in): 2.500 Number of Blades: 8 S-Type blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator AA5052 Aluminum Shroud and Fans: The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine With excellent operating temperature management, allowable levels of engine temperature are stabilized Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine About product shipping: This aluminum radiator is big and easy got damaged during shipping, if the radiator or packing box arrived damaged, pls contact us and offer us pics of damage details, we offer a full refund or replacement If your radiator is leaking or not working after installation, pls contact us and send us a clear pics of leaking details, we will resend or refund for you according to your choice If you have any question or need any help from us, please feel free to contact us, we are willing to solve all problems for you Welcome to our store, Have a nice shopping!!! Note:If need 4-rows core Aluminum Radiator ASIN is: B0B9LZHNGZ

• Core Size(inch): 18 5/8 x 19 3/4 x 1.74 Thickness / Overall Size(inch): 25 x 23 / Rows: 3
• Inlet(inch): 1 1/4 in the Center / Outlet(inch): 1 1/2 on Passenger Side
• The KUUHLERSAT radiator is made of full TAA5052 aluminum construction, 100% aluminum construction provides greater heat and pressure tolerance, better heat dissipation and improved structural rigidity
• Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently, the core of the radiator is welded in vacuum brazing furnace, no epoxy
• Direct bolt-on OEM fitment or replacement, stronger & higher capacity for coolant than stock one
• 100% Leak Tested backed, High performance racing design, improves cooling by 35 -45% Temp
